Binocular Multi-function Handheld Observer

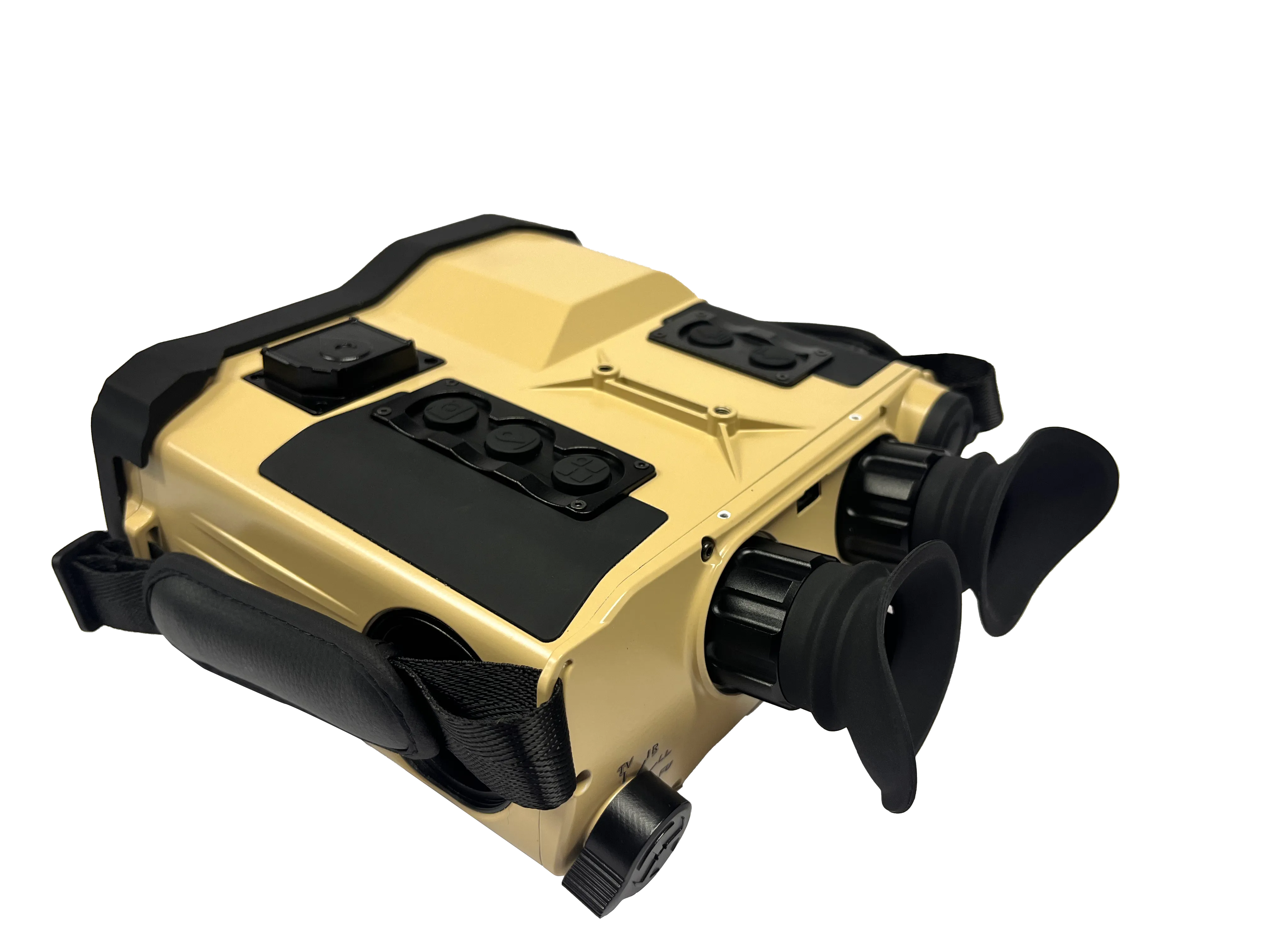

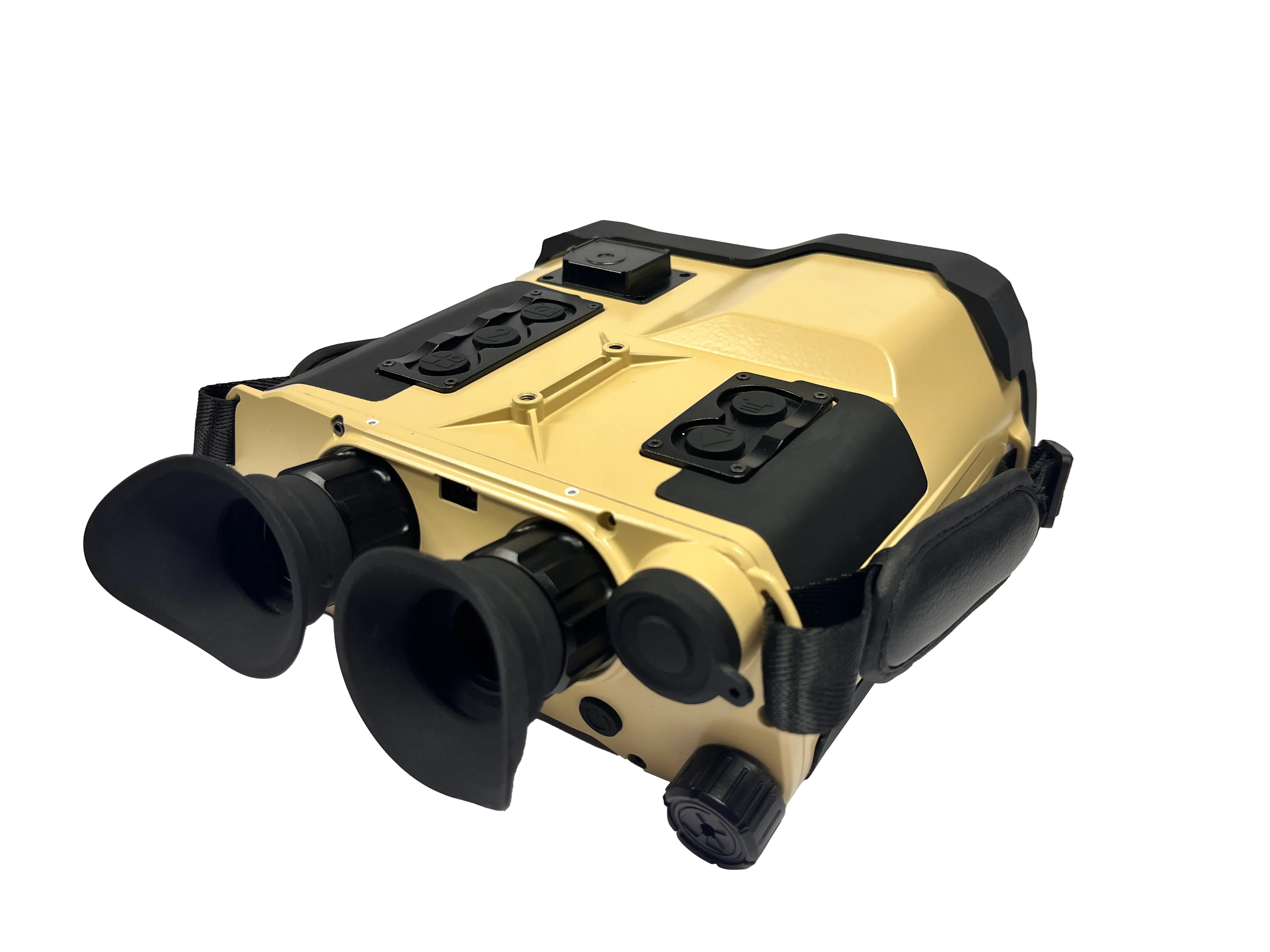

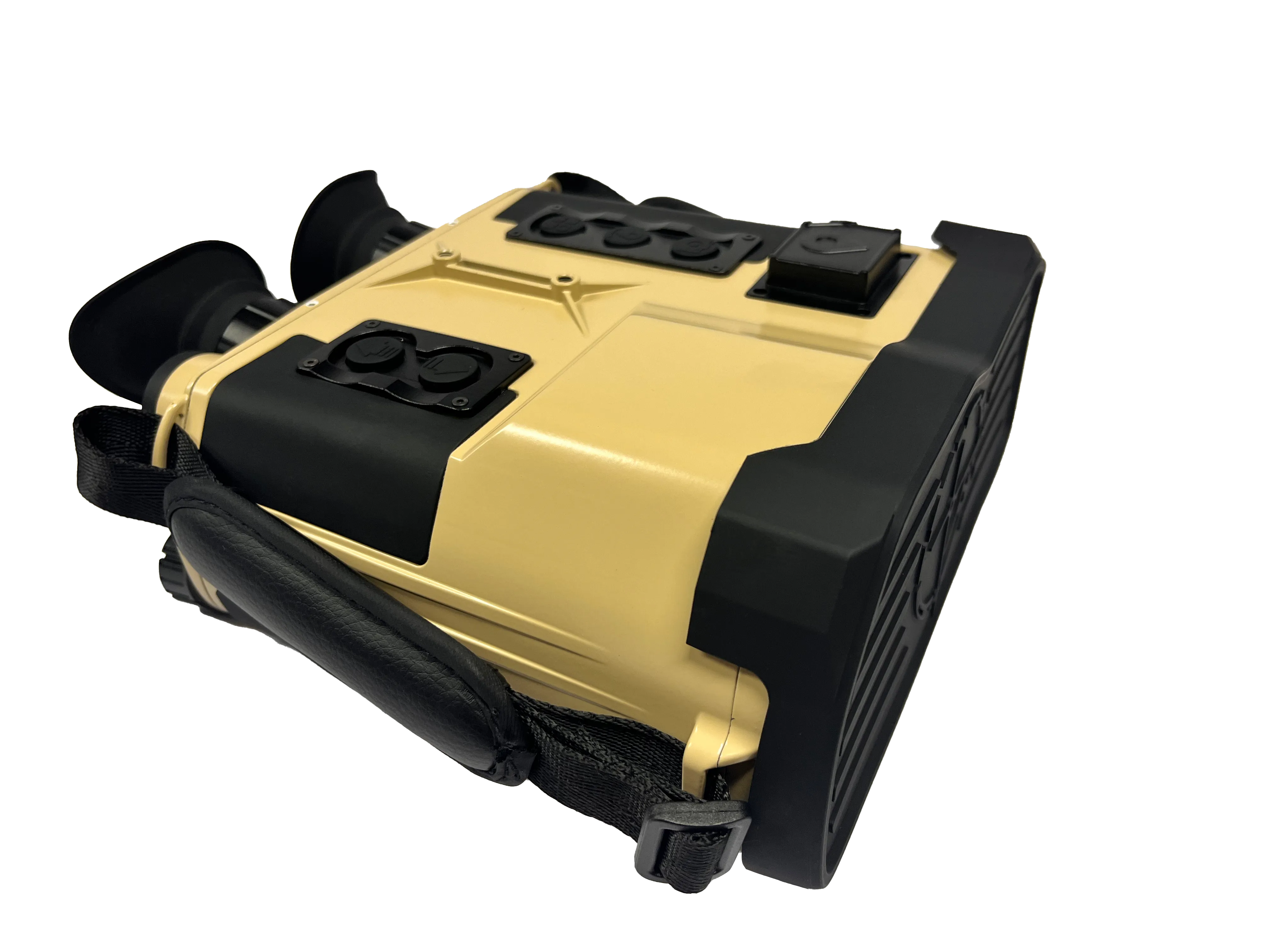

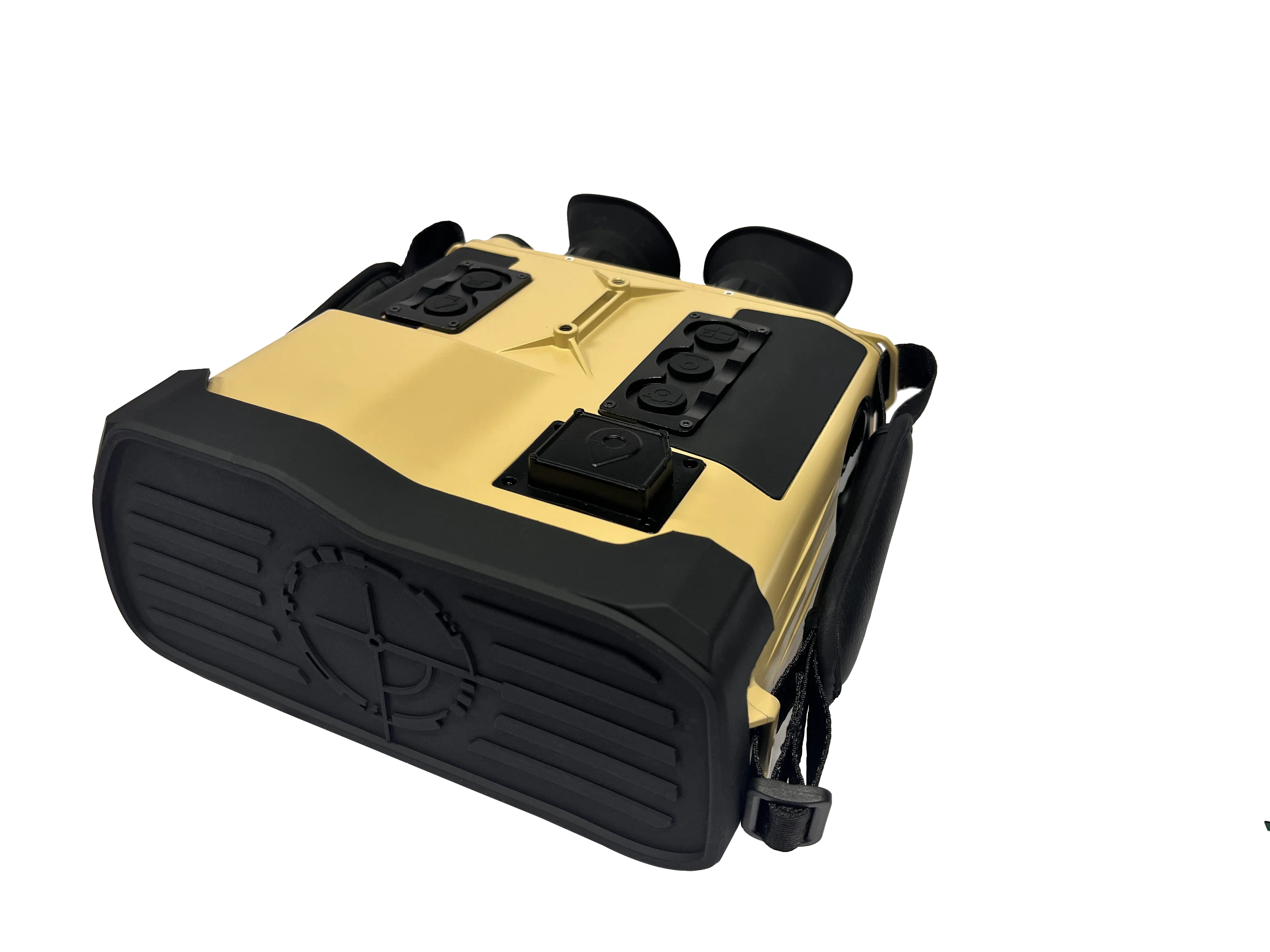

Onick RE850 binocular multifunctional handheld observation instrument is a small intelligent observation device integrating infrared, micro-light, visible light and laser. It has built-in composite positioning module, high-precision digital electronic compass, ultra-long-distance laser ranging and all-in-one meteorological sensor module, and has multi-spectral fusion function.
€0
Product Details
Product Details
Onick RE850 binocular multifunctional handheld observation instrument is a small intelligent observation device integrating infrared, micro-light, visible light and laser. It has built-in composite positioning module, high-precision digital electronic compass, ultra-long-distance laser ranging and all-in-one meteorological sensor module, and has multi-spectral fusion function. It can be used for all-weather target positioning reconnaissance, indication, trajectory solution, and can take photos and videos. It has rich interfaces to build battlefield Internet of Things. It is comfortable to use and easy to carry. It is mainly used for battlefield reconnaissance, trajectory solution, environmental mapping, warning and expulsion.
Product features:
1. 8-in-1 precision target reconnaissance and positioning, self-positioning, target positioning;
2. Ballistic calculation of multiple types of bullets, measurement of meteorological parameters such as temperature, humidity, air pressure, including 267 types of ballistic parameters (supports customization)
Wind deviation can be corrected;
3. Fast and comfortable operation, interface function operation guidance, ergonomic design;
4. The product is fast and stable, IP67 level protection;
5. Small size and light weight;
Application areas:
Reconnaissance, surveillance, outdoor hunting and security protection, etc.
| Image mode | |
| Infrared thermal imaging, low light, full-color visible light, infrared low light fusion (including highlighting, edge, mixing) | |
| Visible light | |
| Resolution | 1920*1080 |
| Field of view | 44°*34°(W)~2.4°*1.8°(T) |
| Working illumination | ≥0.1Lx (black and white) ≥1.0Lx (full color) |
| Thermal imaging | |
| Resolution | 640*512 |
| Pixel pitch | 12μm |
| Field of view | 7.32°*5.86° |
| Low light | |
| Resolution | 800*600 |
| Pixel pitch | 8μm |
| Field of view | 7.32°*5.86° |
| Laser ranging | |
| Distance measurement button | Yes |
| Laser band | 1535nm |
| Measuring range | 30m-6km |
| Positioning component | |
| Positioning mode | Beidou/GPS/GLONASS Multi-mode |
| Electronic compass | |
| Azimuth measurement accuracy | 0.5° (RMS) |
| Pitch angle accuracy | 0.4° (RMS) |
| Laser indication | |
| Invisible laser | 850nm 50mw |
| Visible laser | 520nm 30mw |
| Display | |
| 1080p FHP OLED | 1080p FHP OLED |
| Memory | |
| Storage space | 100,000 pictures or 48 hours of video |
| Working time | |
| Continuous working time | ≥8 hours |
| External interface | |
| DC /USB/HDMI/PAL/ | DC /USB/HDMI/PAL/ |
| Action distance | |
| Visible light observation performance | |
| Human | Detection distance: 12km Detection distance: 9km Identification distance: 4km |
| Car | Detection distance: 14km Detection distance: 11km Identification distance: 6km |
| Infrared/low light observation performance | |
| Human | Detection distance: 5km Detection distance: 2km Identification distance: 1.8km |
| Car: | Detection distance: 7km Detection distance: 3.8km Identification distance: 2km |
