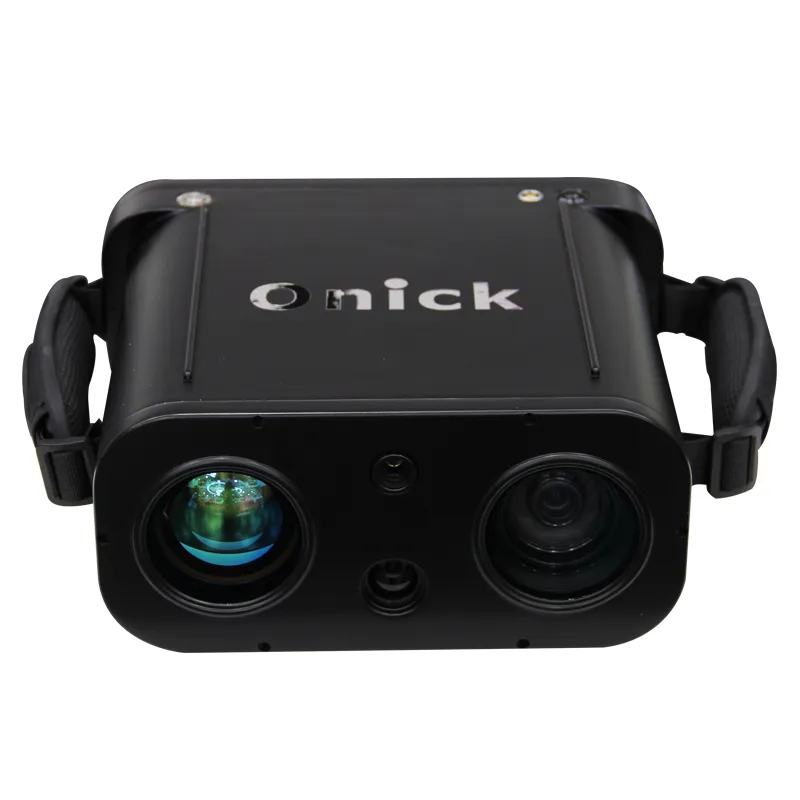

NB-800L 4G Multi-Functional Handheld HD Infrared Laser Night Vision
The newly upgraded Onick NB-800L 4G multi-functional handheld laser night vision device has added green laser rejection function, remote wireless key control function, pitch Angle, roll Angle, electronic compass azimuth Angle and other functions on the basis of the original, and supports 512G large memory, which is more suitable for close range 24 hours a day and night forensics video.Support 4G wireless transmission, support APP remote real-time viewing, photography and video, product practicab
€0
Product Details
Product Details
The newly upgraded Onick NB-800L 4G multi-functional handheld laser night vision device has added green laser rejection function, remote wireless key control function, pitch Angle, roll Angle, electronic compass azimuth Angle and other functions on the basis of the original, and supports 512G large memory, which is more suitable for close range 24 hours a day and night forensics video.Support 4G wireless transmission, support APP remote real-time viewing, photography and video, product practicability is more prominent, clear imaging during the day, good image effect at night. With high degree of integration, small size and light weight, the products are specially developed to meet the needs of users to carry and operate easily, and to meet the requirements of automatic forensics in various fields all day long. Color images (or black and white images) during the day, black and white images at night: the maximum monitoring distance during the day can be up to two kilometers, which is an excellent high-tech night vision monitoring product with high cost performance after practical application testing in similar products. The equipment has long life, good stability, good effect and excellent quality.
At present, the detection and monitoring distance of commonly used night vision equipment is relatively close, and the imaging is not clear in the all-black environment; The laser technology used in this equipment not only solves the drawbacks of imaging under all black conditions, but also can clearly observe and monitor at a distance of hundreds of meters, providing professional day and night monitoring and video recording products for video forensics at any time.
Product Features
1. Green laser rejection: The embedded green laser in the equipment can give instructions and guide, and can also find dangerous people or animals, irradiate their eyes so that they instantly lose the ability to resist, and restore vision after one minute, which does not affect personal safety, and can be rejected from a distance.
2. Equipment operation mode: key control, wireless remote control operation, control equipment doubling, focusing, laser, ranging, etc.
3. 4G wireless transmission: can support APP remote real-time viewing, photography, video, playback and so on.
4. Camera observation distance: 500 meters during the day to see faces or license plates, 1000 meters to find people or vehicles.
5. See faces or license plates at 400 meters at night, and find people or vehicles at 500 meters.
6. Laser ranging: Support 1.2km laser ranging.
7. Positioning function: satellite positioning, support Beidou GPS satellite positioning.
8.Screen display: Support pitch Angle rolling Angle electronic compass azimuth Angle and battery power real-time display.
9. Laser night vision: You can manually press the button to open the laser function, and the device will be turned into black and white mode at night.
10. Key light switch: support, make its all-black operation more clear and convenient.
11.▲ Laser fine-tuning: according to actual needs, the laser strength can be fine-tuned separately to achieve better observation effects, such as: when observing license plates, the laser needs to be weakened, and the laser needs to be strengthened when seeing through the car glass.
12.▲ Screen switch: Support one-key screen function, the device still continues to work, effectively save power, and ensure concealment.
13. Camera and video function: HD camera and video, standard 64G, maximum support 512G large memory, large capacity camera and video, support local playback.
14. Data export: TF card supports hot swap, easy to quickly export data.
15. Modular design, video capture, wireless transmission, recording and storage in one
Application Field
Security, anti-terrorism and anti-riot, military operations, armed police, border guards, fire police and other units of remote monitoring, all-weather forensics, night surveillance.
Type number | NB-800L |
Mirror head | 4.7-141 - mm |
magnification | 30x optical zoom, 8x electronic zoom, autofocus synchronous zoom |
Imaging resolution | 1920 * 1080 |
Image enhancement | Support fog, electronic anti-shake |
Chi Cun | 220×200×93mm |
Laser operating wavelength | 915nm |
Wavelength temperature coefficient | 0.2 to 0.3 nm /℃ |
Day-night switching mode | ICR infrared filter type, manual conversion |
Power supply | Built-in rechargeable lithium battery, also DC 12V power supply |
Device memory | The standard 64 GB TF card supports a maximum of 512 GB memory |
videotaping | Support HD recording, full HD photography |
4G wireless transmission | APP remote real-time viewing, photo, video, playback |
Equipment operation mode | Key control and wireless remote control operation |
Put back | support |
Breath screen | support |
Liquid crystal display | 5.5-inch HD LCD |
Satellite positioning | Support GPS Beidou composite positioning |
Electronic compass | support |
Standby time | > 14 hours |
Laser ranging | Yes, range 3-1200m |
Attitude detection | support |
Character superposition | support |
Key light | support |
Picture information | Pitch Angle Roll Angle electronic compass azimuth Angle and battery power real-time display |
Green laser rejection | The embedded green laser can be used for guidance or remote rejection |
Laser fine tuning | Support, can be individually fine-tuned laser intensity, to achieve better observation effect |
Automatic gain | Automatic/manual |
Backlight compensation | Off/On |
Focusing mode | Automatic focus/Semi-automatic focus/manual focus |
Operating distance | ≥2000m during the day, ≥500m in full black at night |
Lens configuration | The large zoom full-band lens absorbs both visible and infrared light |
guard | IP65 |
guard | Engineering plastics |
Window glass | Optical waterproof and anti-reflection coating |
Operating temperature | - 40 ℃ ~ + 50 ℃ |
Storage temperature | - 50 ℃ ~ + 60 ℃ |
weight | 2.5 kg |
